SPECIFICATIONS

Application: Desktop,Laptop,Number,Tablet

Axis Body Brand: EPOMAKER

Backlight Type: MULTICOLOR

Battery Included: Yes

Brand Name: EPOMAKER

EPOMAKER Model: HE75 V2

Full Size keyboard: No

High-concerned chemical: None

Interface Type: USB

Keyboard Standard: 82 Key

Language: English

Operation Style: Mechanical

Origin: Mainland China

Package: Yes

Style: Standard

Switches Hot swap: Yes

Type: 2.4Ghz Wireless

Wrist Support: No

EPOMAKER HE75 V2 75% ANSI US Layout Tri-mode Wireless Hall Effect Gaming Keyboard 0.005mm Adjustable Actuation/Rapid Triggering

0.005mm Adjustable Rapid Triggering & SOCD

With the blistering 8K polling and 128Khz full board scan rate, the HE75 V2 gaming keyboard promises close to zero latency in registering your every input. Customize the actuation per 0.005mm from typo-free 3.3mm to near-instant 0.1mm, and switch between ultra-fast rapid triggering or precision-prioritized work mode with FN+R_Alt+R_Shift. Achieve your top performance in FPS games with the advanced SOCD, or execute complex MMO rotations with Dynamic Keystrokes (DKS) and Mod-Tap (MT), where a single press turns into multi-action play.

75% Keyboard with Swappable Knob

Designed for competitive gamers and everyday use, the HE75 V2 75% keyboard features the standard 75% layout, compact and freeing up space for mouse movement, and an innovative swappable knob. The dedicated F-row ensures flawless task execution in complex Excel sheet and easy equipment access in FPS games, while the tactile volume knob, intuitive for media control during online meeting or mid-game, can be swapped for two additional keys for macro or hotkeys.

RGB Light & Transparent Keys

Looks as premium as its powerful core, the HE75 V2 keyboard packs 80+2 top-frosted transparent keycaps in premium PC for finger hugging feel and durability against greases and fingerprint. The per-key adjustable RGB backlights, vivid in dozens of dynamic effects, shines through the matte keycaps in gentle, non-harsh lights for immersive gaming at night. The centerpiece is the tri-side ambient light strip, which bathes your desk in crystal-like reflections in ever changing colors, ensuring your battlestation looks as sharp as your gameplay

Creamy and Thocky with 5-Layer Gasket & POM Switch

Unlike the Clicky Clarky noise of regular hall effect keyboard, the HE75 V2 Keyboard delivers the marble-like creamy sound right out of box, with the signature 5-layer dampening gaskt-mount architecture. Each POM-stem switch is factory-lubed for frictionless travel, paired with well-tuned stabilizers to keep your spacebar rattle-free through nights of gaming or days of office tasks.

Mac/WIN Web-Driver & Hot-Swap PCB

Refine macros and try out the advanced hall effect functions seamlessly with the streamlined web-based software of HE75 V2 custom keyboard, that works offline and online for mac and win devices. Following the spirit of easy customization, this hot-swappable keyboard includes a 2-in-1 tool for easy switch and keycap swap, for testing out new switches-from quiet, creamy to clicky and tactile, and various keycaps, as you express personalized aesthetic for themed room or desk design.

Tri-Mode Wireless & 8000mAh Battery

Fast and long-lasting, the HE75 V2 wireless keyboard comes with the 8000mAh battery for 20 hours of continuous use with RGB lights. Seamlessly switch between your desktop, laptop, and tablet for high-performance use, as the versatile BT mode can connect to up to 3 paired devices at once for cross-system flow between WIN, macOS and Android, while the hall effect switches bestow HE75 V2 the ultra-low latency of 0.1ms in cable and wireless 2.4Ghz mode for ultra-fast gaming

Mid-Forced & Ergonomic Height

Engineered for users who live at their desks, the HE75 V2 blends high-tier performance with elite ergonomics. The 30-55gf forced creamy jade hall effect switch, heavy enough to provide the resistance against accidental input while resting your hands on keyboard, yet light enough to prevent fatigue during a marathon coding session. The sculpted Cherry profile matches the natural arc of your fingers’ movement while typing, significantly boosting typing speed while reducing repetitive strain, paired with the 2-stage kick-stand offering three distinct angles, ensures comfortable typing regardless of hand size or differences in desk height.

Specifications:

Brand: EPOMAKER

Model: HE75 V2

Layout: 75% Layout, ANSI US Layout, QWERTY Layout

Number of Keys: 80 Keys + 1 Knob (Knob is swappable as 2 Keys)

Battery: 8000mAh Battery

Connectivity: 2.4Ghz/BT/Wired

Compatibility: Mac/WIN/Android

Keyboard Dimensions: 32.4*13.2*4.3cm

Keyboard Weight: about 1kg

Front Height: 1.9cm

Back Height: 3.29cm

Typing Angle: Three Angles at 5.8, 9 and 12 degrees with the 2-stage Adjustable Kickstand

Case Material: ABS Plastic

Plate Material: FR4 Plate

Flex-Cut: No, the HE75 V2 HE keyboard does not have flex-cut plate or PCB.

Stabilizers: Plate-Mounted Stabilizer

Mounting Structure: Gasket-Mount

Sound Optimizing: 5-layer sound-optimizing system including Sandwich Foam, PET sound enhancement pad, sponge and bottom silicone.

Keycaps Profile: Cherry Profile

Keycaps Material: PC Keycap, Matte Transparent

Keycaps Manufacturing Technique: Print

Switch: Factory Lubed Hall Effect Switch

Hot Swappable: Yes, the HE75 V2 Custom keyboard is hot-swappable with some hall effect Switches

RGB: Yes, the HE75 V2 Gaming keyboard has dynamic RGB backlight with per-key adjustable south-facing LEDs, and the adjustable RGB front light.

Polling Rate: 8000hz (USB/2.4Ghz) or 125hz (BT)

Scan Rate: 128KHZ Full Board, 16KHZ per Key

Latency: 0.1ms (Wired), 0.58ms (2.4Ghz) and 15ms (BT)

Software: Yes, the EPOMAKER HE75 V2 Hall Effect Keyboard can be programmed using the EPOMAKER 3.0 Software (EPOMAKER V4).

Specifications for EPOMAKER Creamy Jade Mag Switch:

Switch Type: Hall Effect Magnetic Switch

Initial Force: 30gf Min

Bottom-out Force: 55gf Max

Initial Magnetic Flux (if PCB=1.6mm): 95±15GS

Bottom Magnetic Flux (if PCB=1.6mm): 580±50GS

Trigger Travel: Adjustable per 0.005mm, from 0.1mm to 3.5±0.1mm

Total Travel: 3.5±0.1mm

Top Case: PC, Transparent

Bottom Case: PA66

Stem/Kone: POM

Light Diffuser/Light Pipe: Yes, with transparent acrylic light diffuser

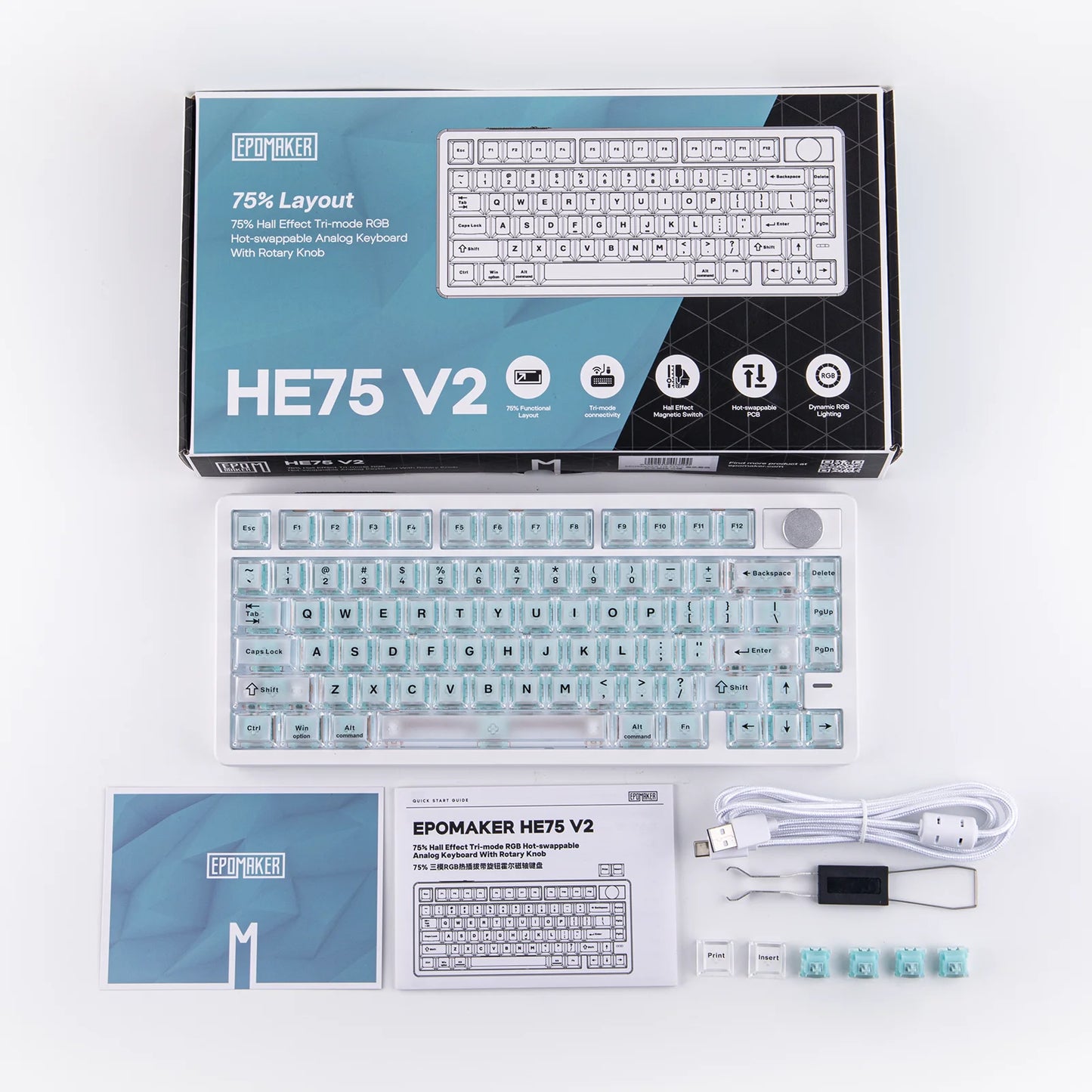

Package Content:

The HE75 V2 75% Gaming Keyboard

The detachable USB A-to-C Cable and a wireless 2.4Ghz Receiver (Stored under the Left Kick-Stand)

Keycaps for the Swappable Knob, Extra Switch and a 2-in-1 Switch-and-Keycap Puller

The Summarized Multilingual Manual and the Product Card
